This page shows the measured eigenmodes of vibration for a violin made by Antonio Stradivari. For the sake of the animation, the amplitudes have been greatly exaggerated and the frequencies slowed down (slow-motion display).

Click on the picture in order to start the animation.

Frame model animation

Example: Violin by Antonio Stradivari (1712) – „Schreiber“-Stradivari.

Animationen

Your flash plugin version does not match the required version 9.0.0 for this website. Please go to http://www.adobe.com/shockwave/download/

Frame model animation
Example: Violin by Antonio Stradivari (1712) – „Schreiber“-Stradivari.

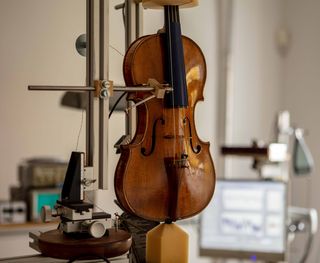

The eigenmodes of vibration ("modes) which are animated here represent measurement results which were produced through experimental modal analysis. What we see here involves actual measurements ("transfer functions") on the real instrument and not a simulation. Producing the skeleton model involved measurement of 595 transfer functions.

Animierte Höhenliniendiagramme

Eine Alternative zum Drahtgittermodell ist die Darstellung mittels eines animierten Konturdiagramms (Höhenliniendarstellung). In unserm Fall schwingen die gelb-roten Bereiche in der Phasenlage gegen die grau-blauen Bereiche. (Phasendifferenz 180°).
